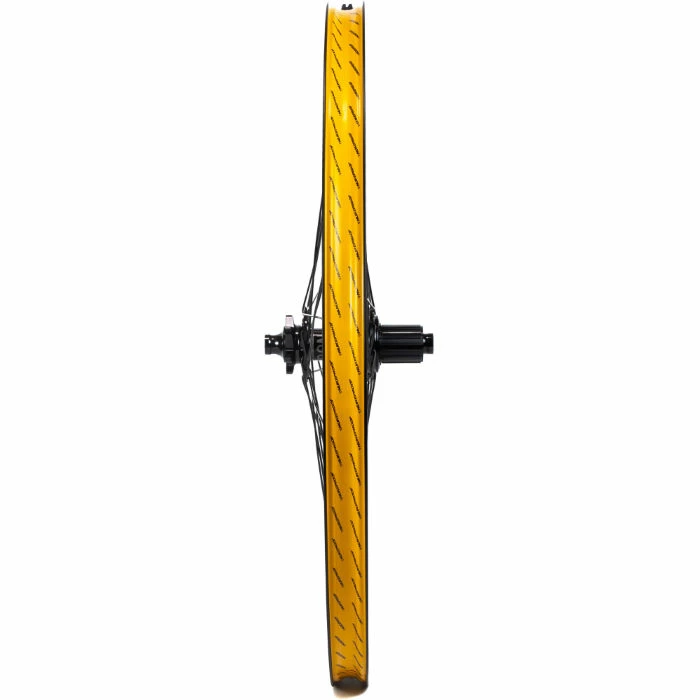

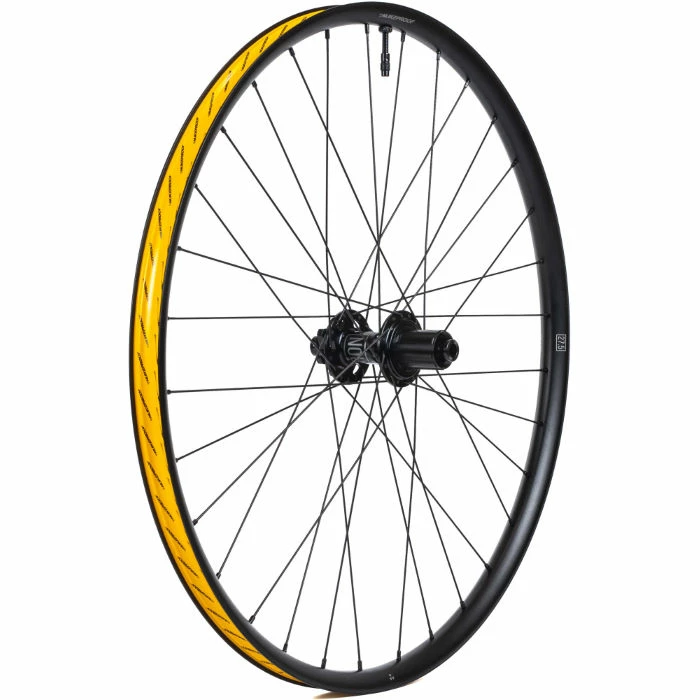

Nukeproof Neutron V2 Rear Wheel 36t

The Nukeproof Neutron V2 Rear Wheel 36t has been completely redesigned from the ground up and gives riders incredibly fast and smooth-rolling performance on every ride.

This rear wheel features 36 points of engagement and comes in a range of freehub options. Nukeproof has also made freehubs available separately and easy to change if you choose to upgrade your drivetrain in the future.

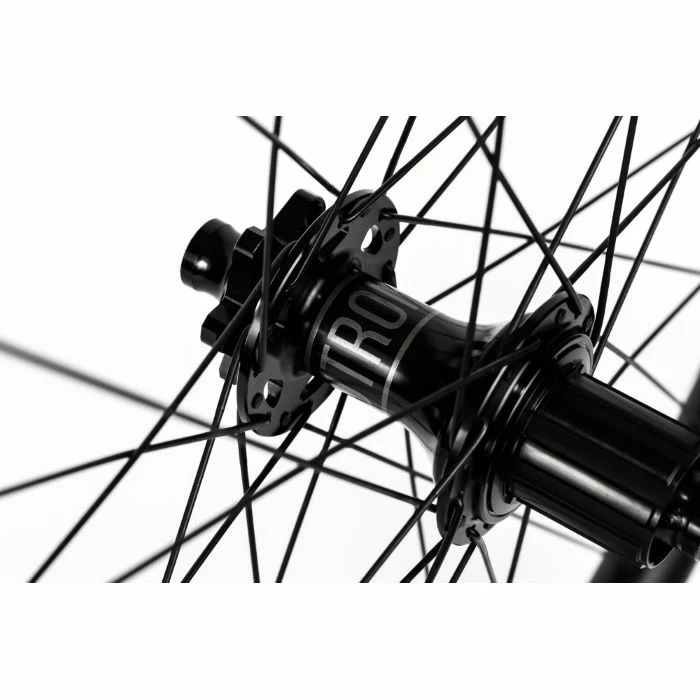

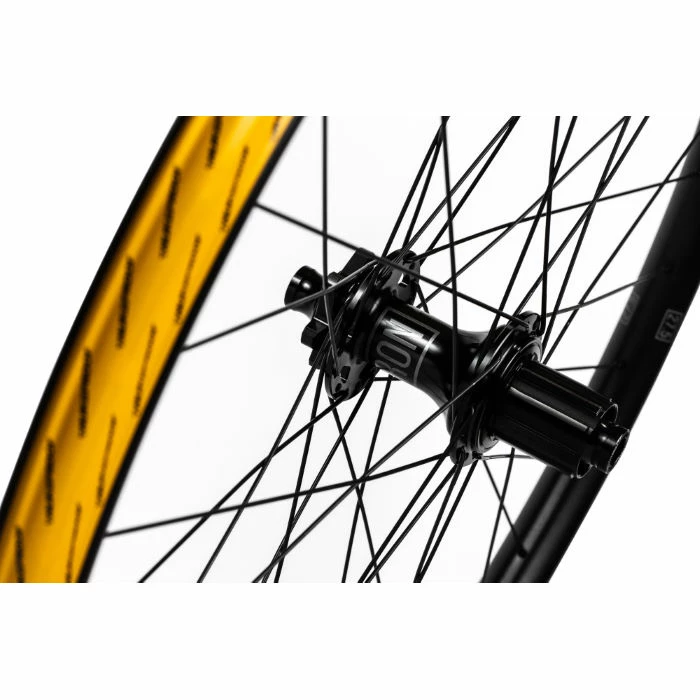

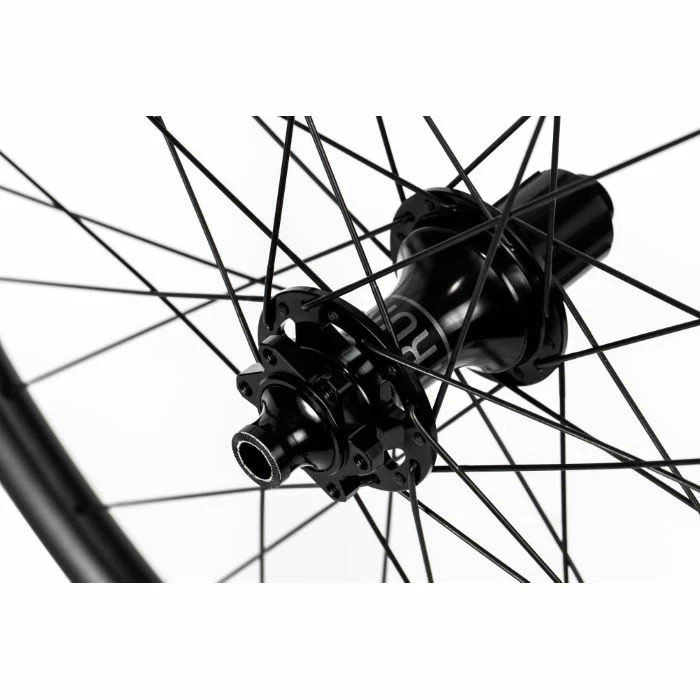

The 142mm hub can be converted to 135mm QR and the 148mm HG / XD hub can be converted to 141mm using end caps. The hub has been machined to remove excess material and make it as strong and light as possible. Nukeproof have increased the thickness of pawl springs in these hubs to give secure engagement on every pedal stroke.

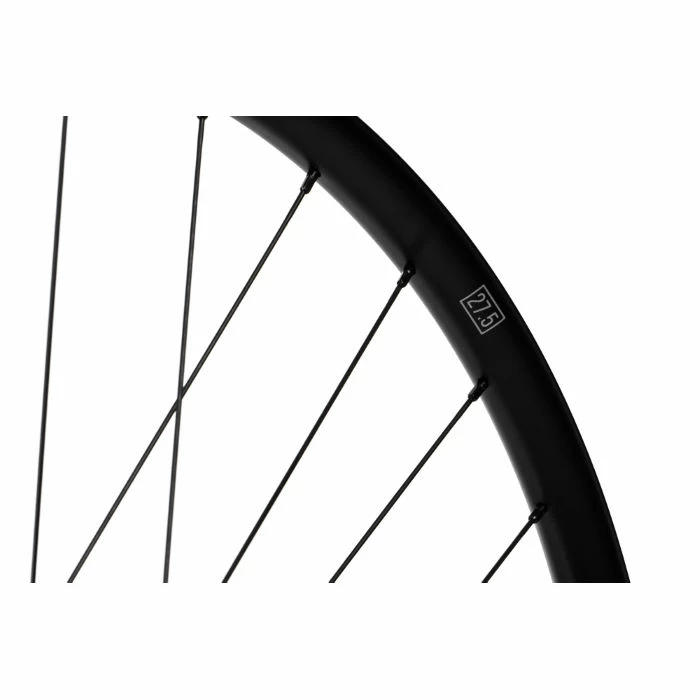

The 6066 alloy rim has been extensively to ensure it is a rim which is light enough for aggressive trail riding but strong enough for DH.

Nukeproof have used J-Bend spokes meaning tensioning and spoke replacement is much simpler than using a straight pull spoke.

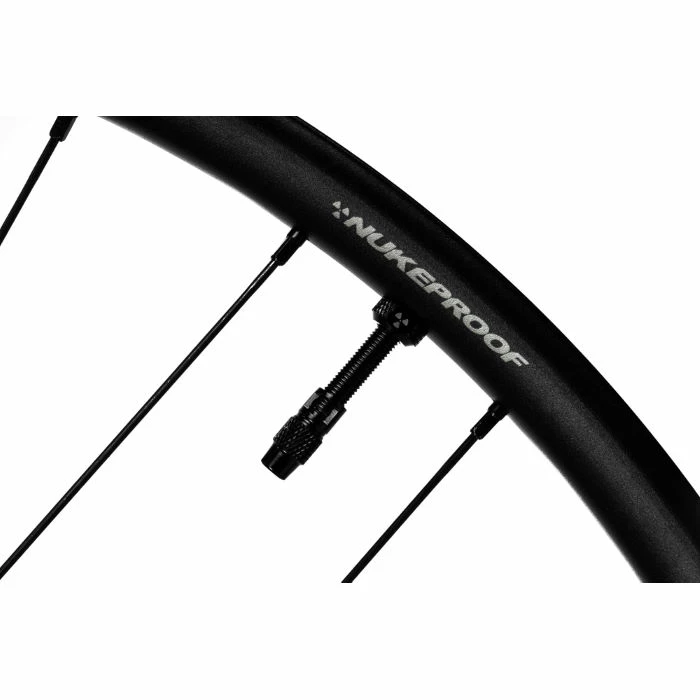

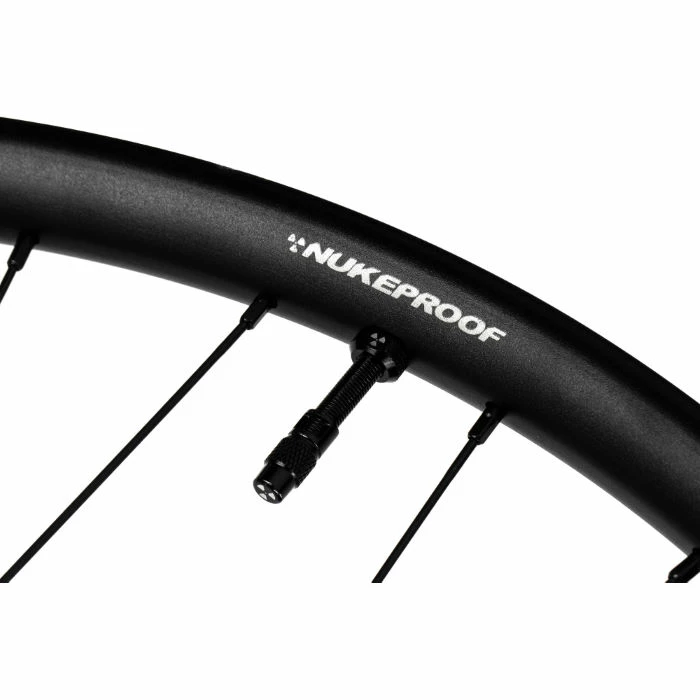

The wheels come taped with tubeless valve installed so all you need to do is add sealant and your tyre to get a finished tubeless setup. The valve supplied is Nukeproof’s Horizon valve which also has a core remover built into the cap. This valve is also compatible with tyre inserts like Nukeproof ARD.

Spoke lengths on the front wheels are the same regardless of spacing, the length changes with wheel size:

Wheel Size       Spacing                             Non Driveside Spoke Length        Driveside Spoke Length
27.5″            142mm / 148mm x 12mm                 274                                            272
27.5″            150mm / 157mm x 12mm                 274                                            273
29″               142mm / 148mm x 12mm                 292                                            290
29″               150mm / 157mm x 12mm                 292                                            291

Conversion kits and replacement end caps available separately.

Caps                            Nukeproof Part Number                Replacement or Conversion
Rear 135mm QR         NUKNEUV2R135CAPS           Convert Non Boost 142mm hub to QR
Rear 141mm               NUKNEUV2R141BCAPS        Convert Boost 148mm HG / XD hub to 141mm QR (It is not possible to convert Nukeproof’s 148mm microspline hubs to QR)
Rear 142/148/157mm NUKNEUV2R148CAPS           Replacement caps for 142mm, 148mm and 157mm
Rear 150mm               NUKNEUV2R150CAPS           Replacement 150mm caps

Full range of spare parts available.

Topfunktioner:

• Rim Material: 6066 Alloy
• Use: MTB, Trail, All Mountain, Enduro and DH
• Spacing Options: 142x12mm, 148x12mm, 150/157x12mm
• Conversion Options: 142x12mm can be converted to 135mm QR, 148x12mm HG / XD can be converted to 141mm Boost with end caps (sold separately)
• Rear Hub Engagement: 36 points of engagement (every 10 degrees)
• Freehub Options: Shimano HG (9-11-Speed), Shimano Microspline (12-Speed) or SRAM XD (11 and 12-Speed)
• Spokes: Spoke Type: J-Bend; Spoke Count: 32; Lacing Pattern: 3x; Disc Mount: 6-bolt
• Width: Inner Rim Width: 28mm; External Rim Width: 32mm; Rim Height: 18mm
• Tubeless Ready: Yes – Pre-taped and valve supplied; Single or Pair: Single
• Weight: 15mm Boost Front: 905g including valve & tape; 148mm Boost HG Rear: 1045g including valve and tape
